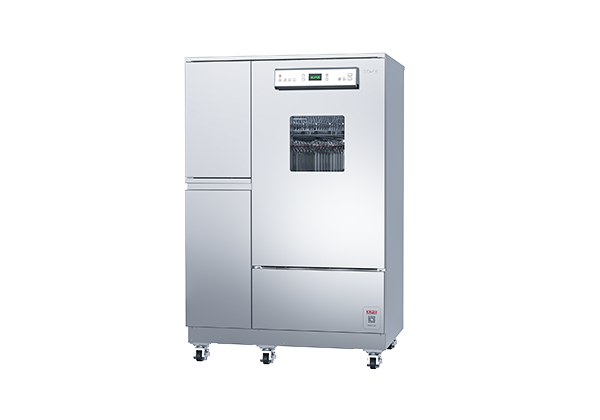

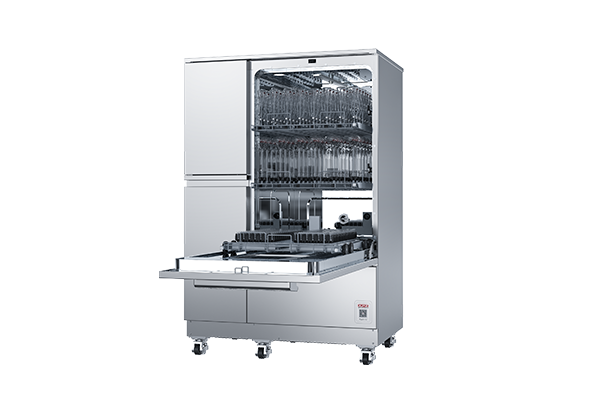

Flash-F2---Lab Glassware Washer
Flash-2/F2:
Used for cleaning and drying conventional glassware in the laboratory, suitable for cleaning and drying of laboratory glass, ceramics, metal, plastic and other materials (such as: volumetric flask, sample injection vial, triangular flask, colorimetric tube, test tube, Petri dishes, heart jars, beakers, etc.).
structure:
The inner cavity is made of 316L stainless steel, and the outer shell is made of 304 stainless steel, which has super corrosion resistance.
Control System:
The control system has 35 standard programs and 100 custom setting programs.
Work requirements:
Power supply: 380-400V three-phase five-wire
Inlet water: municipal tap water and laboratory pure water for rinsing
Power: 9KW/18 total approved power 13KW/24KW
Quadruple filter system:
Inlet coarse filtration prevents particles in the water from entering the cavity, double sewage circulation filtration helps to prevent particles and debris from recirculating in the water, and reverse flow filtration of the circulation pump protects the service life of components.
Circulatory system:
0-1000L/min frequency conversion cycle speed can be adjusted, with cycle speed detection system and overheat protection device.
Drying system:
High-efficiency HEPA filter compressed air drying system can thoroughly dry the inner and outer surfaces of glassware, and start the drying system with one button;
The drying temperature is adjustable and the drying time is adjustable.
Specifications:
| Serise | Item | Flash-F2 |
| Flash Series | Diemsion | W930*D750*H1326mm |
| Chamber volume | 308L (built-in light control) | |
| Number of cleaning layers | 1-4 | |
| Circulation pump flow rate | 0-1000L/min frequency conversion cycle | |
| Heating Power | 9kw/18kw | |
| Electricity | 220v/380v | |
| Drying way | Hot air heating | |
| Instllation method | Freestanding | |
| Opening method | Front load door |
Features description:
| Series | Item | Flash-F2 |
Flash series | Operation interface | Microcomputer intelligent control.OLED display, water proof Stainless steel metal buttons with 3 shortcut program keys Support Chinese/ Russian/ English three languages |
| Programs | 35 Detault, 100 user-defined | |
| Password | Multi- level password protection | |
| Door | Automatic opening door with viewing window | |
| Baskets | Modularity basket, one layer can put 2 baskets | |
| Detection& tracking system | Conductivity detection function (Optional); Printingfunction (Optional); Data storage function | |
| Wash start delay | Wash start delay function & Delay shutdown function | |
| Basket identitication function | Can save water, save electricity, save detergent | |
| Spray system | The speed sensing system of the spray arm can adjust the speed according to the type of utensils to be cleaned according to the user's needs, and carry out real-time monitoring to ensure that the speed is within the set range |
Welcome to buy Xipingzhe, we will provide you with comprehensive technical support and perfect after-sales service!
